MAXL-5150F,5200F,5230F 150W,200W,230W 防爆平臺燈
產品類別: 防爆照明灯具

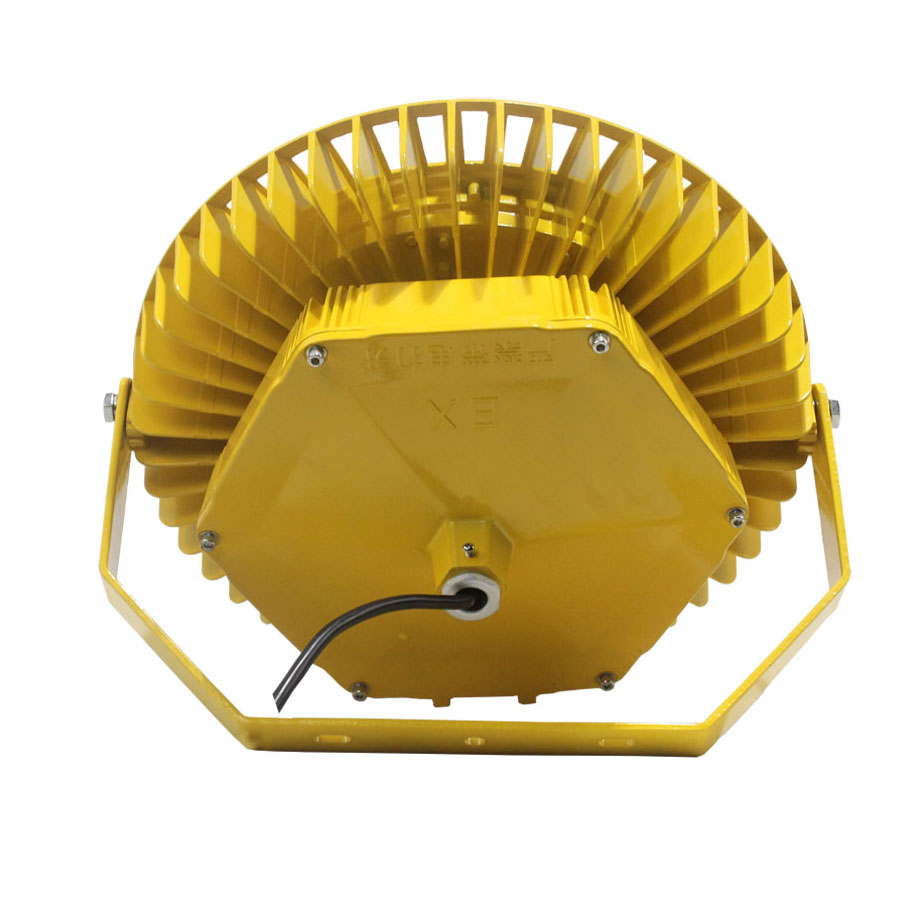

名稱: MAXL-5150F,5200F,5230F 150W,200W,230W 防爆平臺燈
name: MAXL-5150F,5200F,5230F 150W,200W,230W Explosion Proof Platform Light
瀏覽次數: 6195

Features

Super brightness led platform light.Use OSRAM LED Chip and Meanwell Driver;



Excellent anti-explosion,anti-corrosion and durability,safe use in all kinds of inflammable and explosive hazardous area,such as petrochemical plant,powder plant,gas equipments;



Aluminum Integratied lamp housing make chip connect with housing tightly,through cooling fins and special airflow structure,make excellent heat radiation;



Almost free maintenance required,IP66 water proof and dust proof,100000 hours lifespan;



Intelligent power regulator supplement luminous flux and reduce luminous decay,with protection of overvoltage,over current,and surge current;



Gas explosive environment:Group IIA,IIB,IIC;

For Gas Zone 1,Zone2;For Dust Zone 21,Zone 22;Temperature class: T1 to T6;

Model

MAXL-5150F

MAXL-5200F

MAXL-5240F

Light Type

Platform Light

Voltage

AC220V / AC127V / DC24V / DC36V

Protection Class

Exd II CT6 Gb,IP66

Insulation Degree:I,

Corrsion Resistant:WF2,

Rated Power

150W

200W

240W

Equivalent MH Lamp

400W

500W

700W

Luminous Efficacy

Up to 130 Lm/W

Luminous Flux

19500Lm

26000Lm

31200Lm

Mounting Height

10-15m

15-20m

20-30m

Lens Angle

60°

90°

110°

Space Height Ratio

0.9

1.35

1.4

CRI(RA)

>70

CCT

5000K

Power Factor

>0.9

Life Span

100000 Hours

Leading Cable Diameter

D8-14mm

Cable Inlets

Screw Thread

M20×1.5,M25×1.5,NPT1/2",NPT3/4",G3/4"

Material

Lampshade:Explosion Proof Tempered Glass;

Housing:DIECAST Al;

Weight

10.2Kg

Install Way

Bracket / Ceiling / Wall Mounted / Pole / Flange

Measurement

D420*360mm
