MAXL-12040,12050 防爆熒光燈
產(chǎn)品類別: 防爆照明灯具
名稱: MAXL-12040,12050 防爆熒光燈

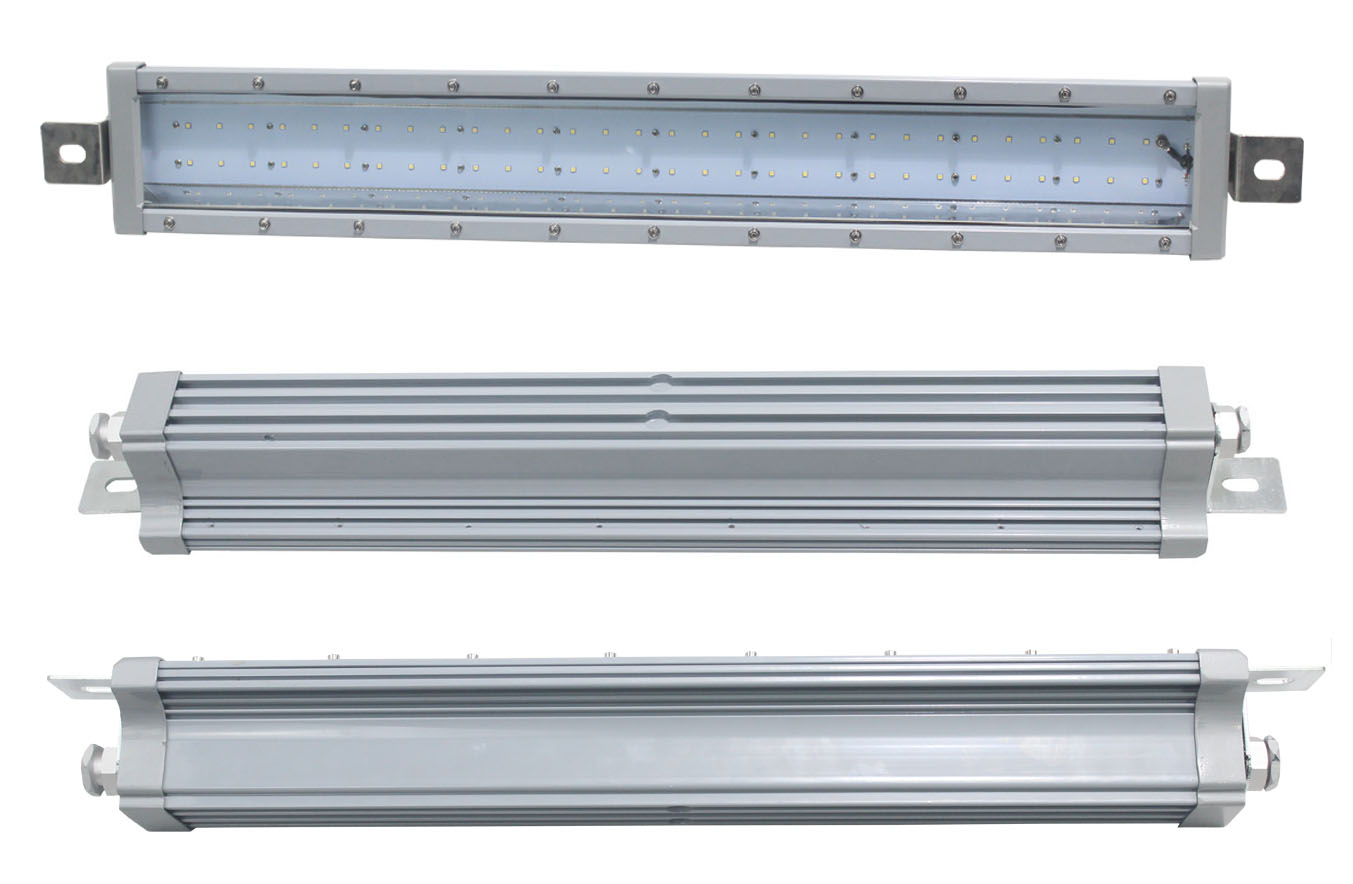

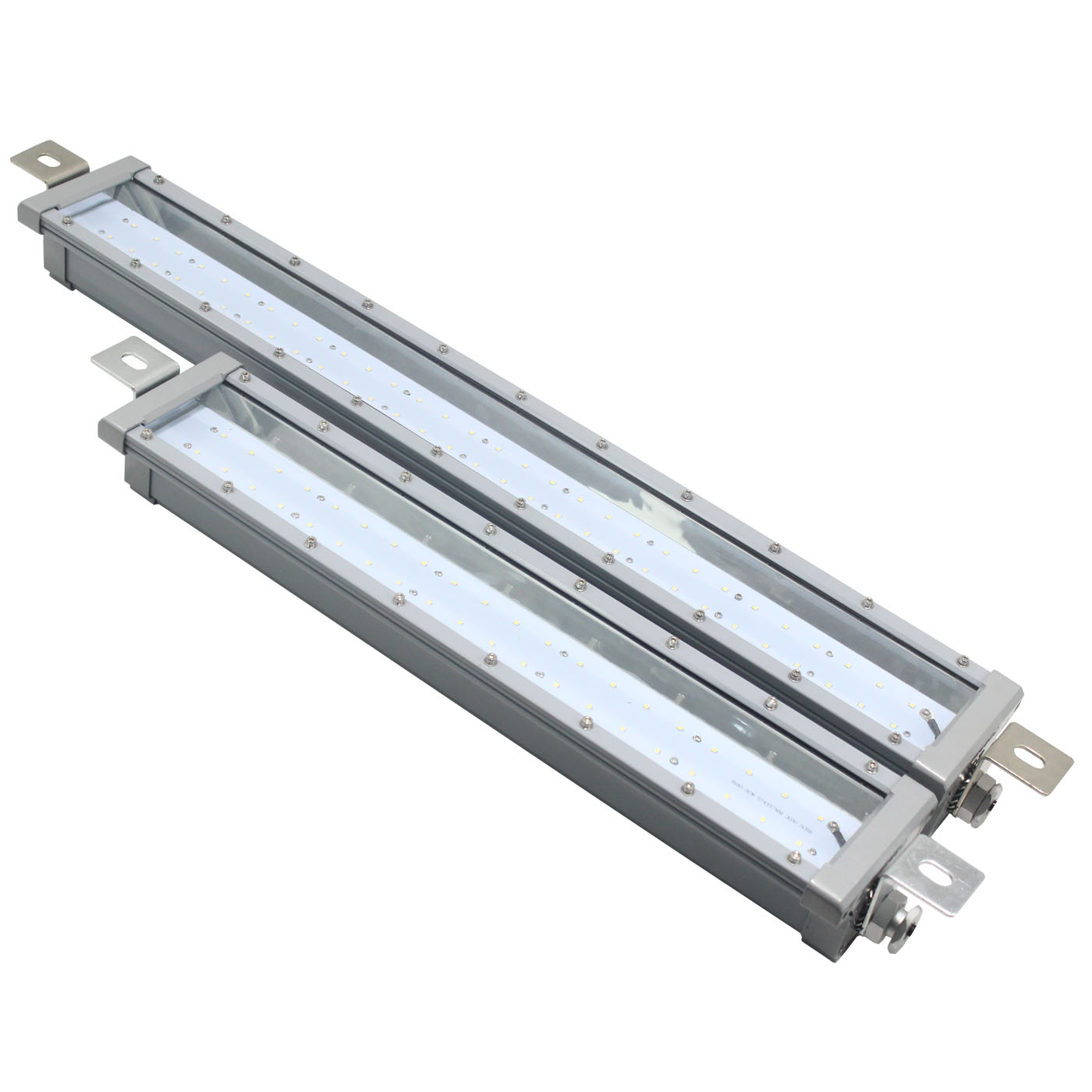

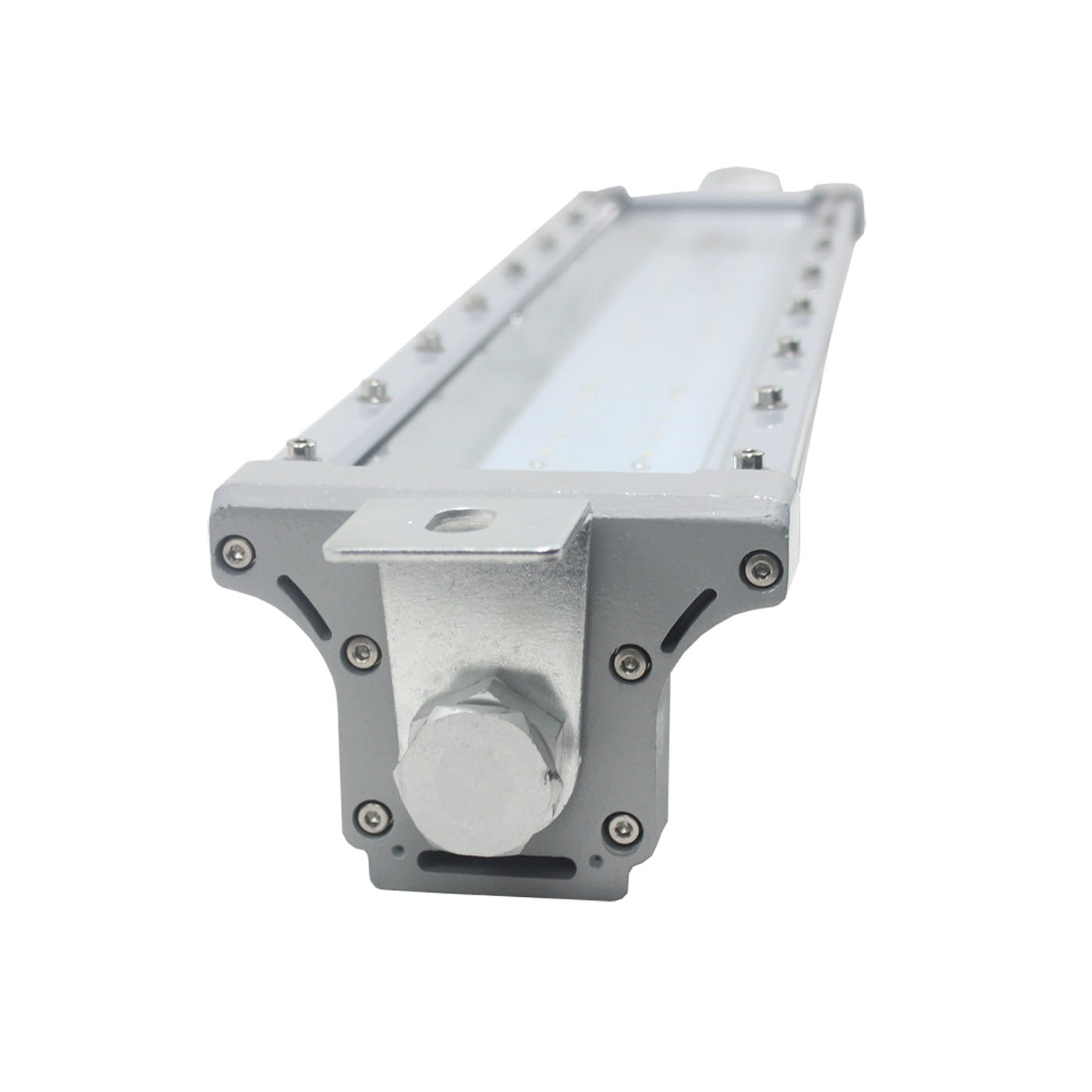

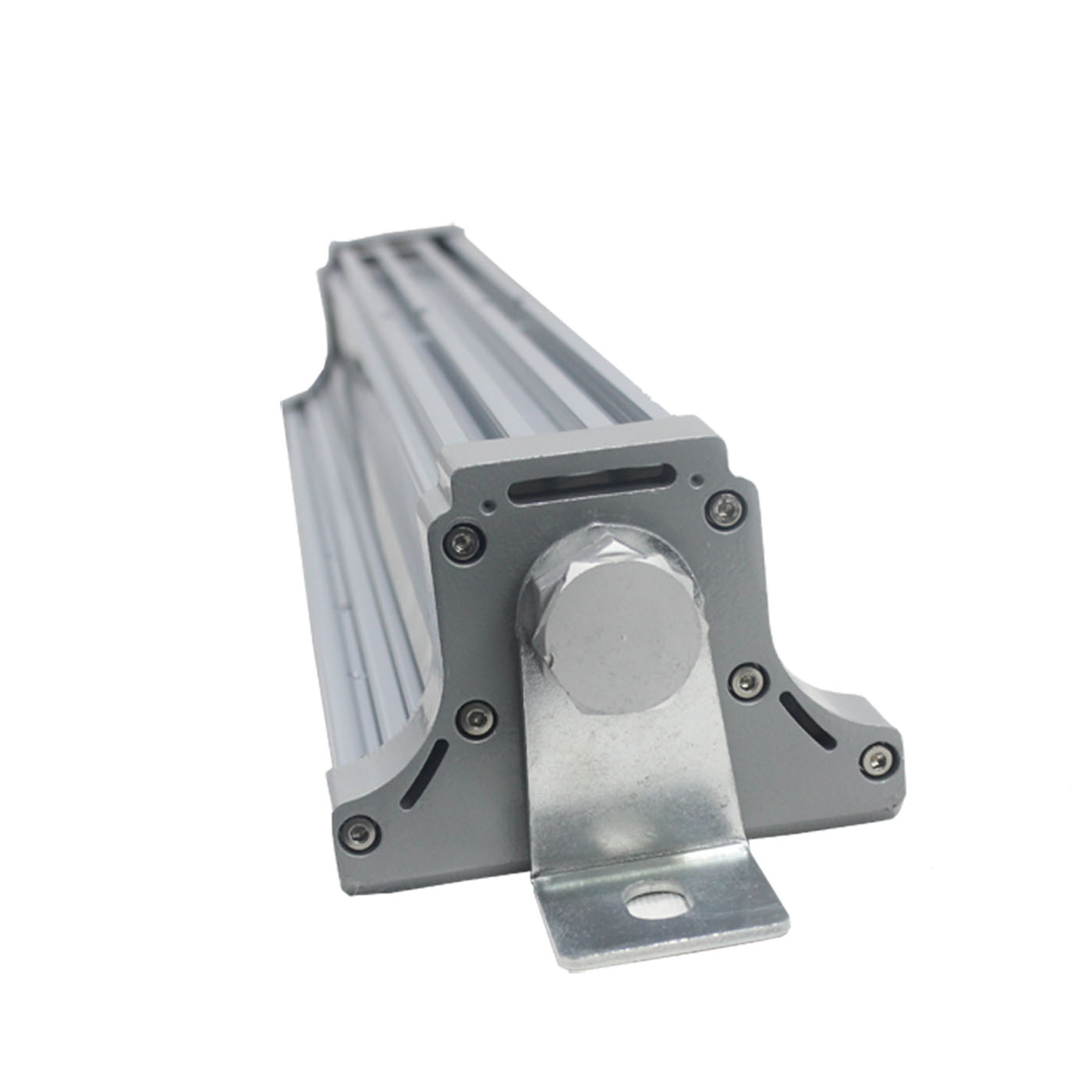

name: MAXL-12040,12050 Explosion Proof Fluorescent Light
瀏覽次數(shù): 11197

Features

Super brightness led fluorescent light / linear floodlight.Use OSRAM LED Chip and Meanwell Driver;



Excellent anti-explosion,anti-corrosion and durability,safe use in all kinds of inflammable

and explosive hazardous area,such as petrochemical plant,powder plant,gas equipments;



Aluminum Integratied lamp housing make chip connect with housing tightly,

through cooling fins and special airflow structure,make excellent heat radiation;



Almost free maintenance required,IP66 water proof and dust proof,100000 hours lifespan;



Intelligent power regulator supplement luminous flux and reduce luminous decay,

with protection of overvoltage,over current,and surge current;



Gas explosive environment:Group IIA,IIB,IIC;

For Gas Zone 1,Zone2;For Dust Zone 21,Zone 22;Temperature class: T1 to T6;

Model

MAXL-12040

MAXL-12050

Light Type

Fluorescent Floodlight

Voltage

AC100-240V / DC24V / DC36V

Protection Class

Exd II CT6 Gb,

Insulation Degree:I,

Corrsion Resistant:WF2,IP66

Rated Power

40W

50W

Equivalent MH Lamp

100W

150W

Luminous Efficacy

Up to 130 Lm/W

Luminous Flux

5200Lm

6500Lm

Mounting

Height

3-6m

6-8m

Lens Angle

110°

Space Height Ratio

1.4

CRI(RA)

>70

CCT

5000K

Power Factor

>0.9

Life Span

100000 Hours

Leading Cable Diameter

D8-14mm

Cable Inlets

Screw Thread

M20×1.5,M25×1.5,NPT1/2",NPT3/4",G3/4"

Material

Lampshade:Explosion Proof Tempered Glass;

Housing:DIECAST Al;

Operation Temp

-45 – 70℃

Weight

3.5Kg

5.5Kg

Install Way

Bracket / Ceiling / Wall Mounted

Measurement

710*120*100mm

945*120*100mm
